Informazioni dettagliate

Riflettanza leggera:	85%	Garanzia:	25 anni
Resistenza alla muffa e alla muffa:	SÌ	Resistenza al fuoco:	Classe A.
Misurare:	2'x2 '	Metodo di installazione:	Drop-in
Utilizzo:	mattonelle del soffitto	Eco-friendly:	SÌ
Isolamento termico:	Value R 4.2	Colore:	Bianco
Materiale:	Lana minerale	Riciclabile:	SÌ
Spessore:	1 pollice	Assorbimento del suono:	NRC 0,85
Resistenza all'umidità:	90%
Evidenziare:	fiberglass ceiling board with sound absorption , mineral wool ceiling tile NRC 0.9 , soundproof fiberglass ceiling panel

Descrizione di prodotto

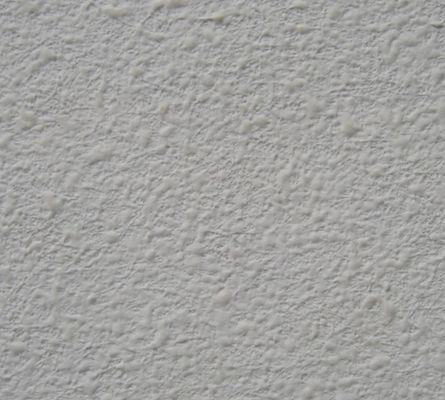

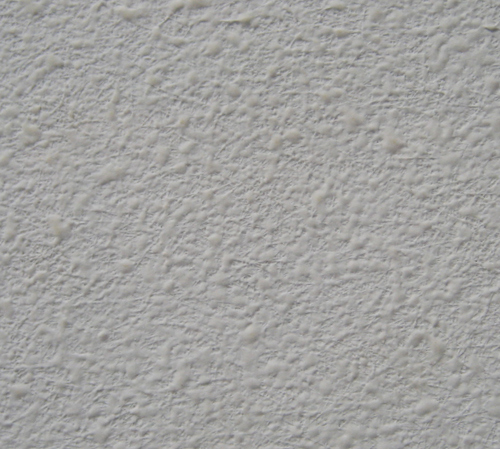

FIBERGLASS CEILING BOARD

FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles will be parallel to grids system after installation.

Technical Data

Material	Fiberglass wool board
Density	90-130kg/m3
Face	Painting laminated with decorative fiberglass tissue or PVC facing
Color	White, black and others to order
Fire-resistant	Class A
Thermal-resistant	≥0.5 (m2·k/w)
NRC	0.9-1.0
Humidity	Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating
Moisture rate	≤1%(JC/T670-2005)
Environmental impact	Tiles and packing are fully recyclable
safety	Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3

Packing and Loading Quantity for Containers:

SIZE	CARTON/40HQ	PIECES/CARTON	M2/40HQ
60060015MM	532	20	3830.4
600120015MM	266	20	3830.4
60060020MM	532	15	2872.8
600120020MM	266	15	2872.8
60060025MM	532	12	2298.24
600120025MM	266	12	2298.24

Installation:

use exposed grids, grids width:15mm or 24mm
tiles are easy to trim and install
both inches and centimeters grids are available

Applications:

classrooms, offices, shopping center, etc.

Main Advantages:

non-combustible
no sagging, wrapping or delaminating
green building material
excellent sound absorption

Prodotto Tag:

Luogo di origine:	Cina
Marca:	FANRYN

Imballaggi particolari:	Sacchetto di plastica
Tempi di consegna:	15 giorni di lavoro
Termini di pagamento:	T/t
