Fiberglass Ceiling Board | High-Density Acoustic & Fire-Resistant Ceiling Solution

Informazioni di base
Luogo di origine: Cina
Marca: FANRYN
Certificazione: CE
Quantità di ordine minimo: uno 40HQ
Imballaggi particolari: sacchetto di plastica
Tempi di consegna: 10 giorni lavorativi
Termini di pagamento: T/T
Informazioni dettagliate
Resistenza alla temperatura: Da -268°C a 700°C Applicazione: Isolamento termico per edifici, attrezzature industriali
Impatto ambientale: Riciclabile ed ecologico Resistenza al fuoco: Non combustibile, Classe A1
Resistenza alla compressione: ≥10kPa Coefficiente di assorbimento del suono: 0,85
Spessore: Da 25 mm a 150 mm Conduttività termica: 0,035 W/m·K
Assorbimento d'acqua: <1% Metodo di installazione: Taglio e montaggio con fissaggi meccanici o adesivi
Colore: grigio Materiale: Lana minerale
Dimensioni: Disponibile in tavole, rotoli e lastre Densità: 40-200 kg/m³
Evidenziare:

fiberglass ceiling board high-density acoustic

,

fire-resistant fiberglass ceiling tile

,

acoustic fiberglass ceiling solution


Descrizione di prodotto

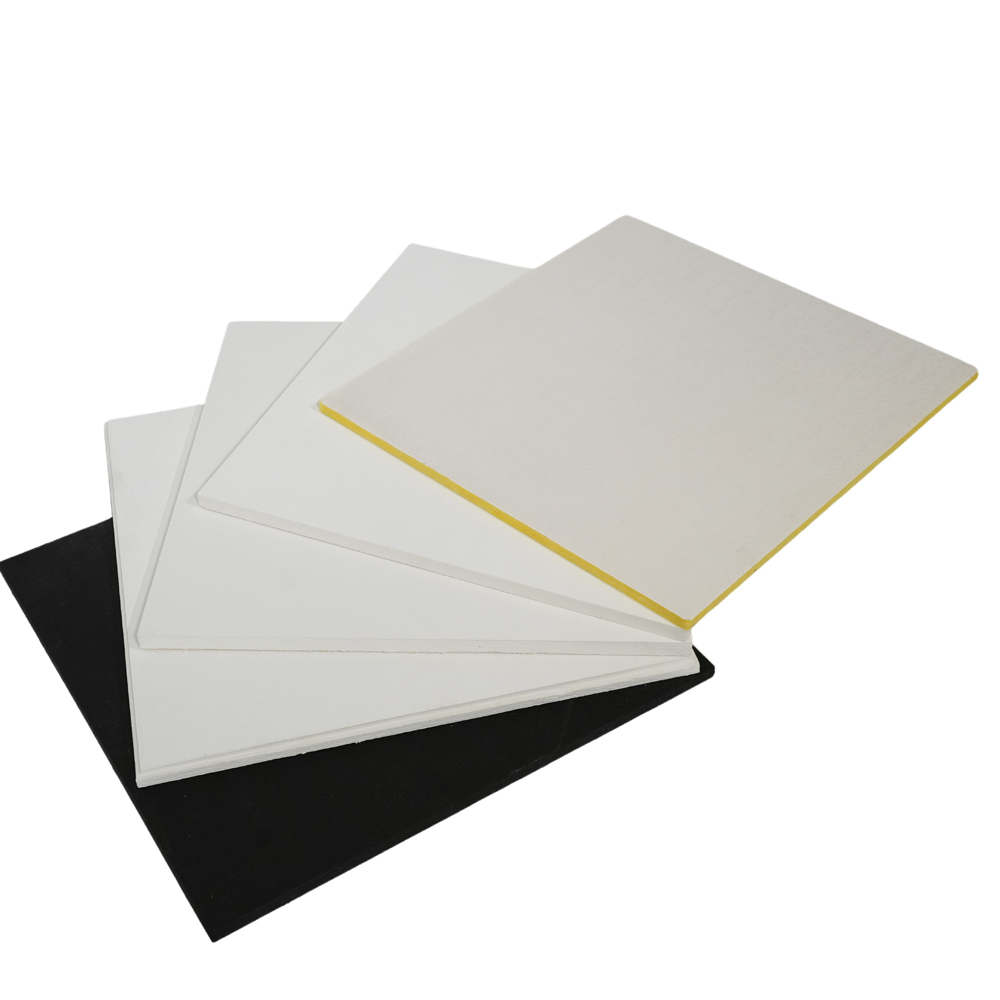

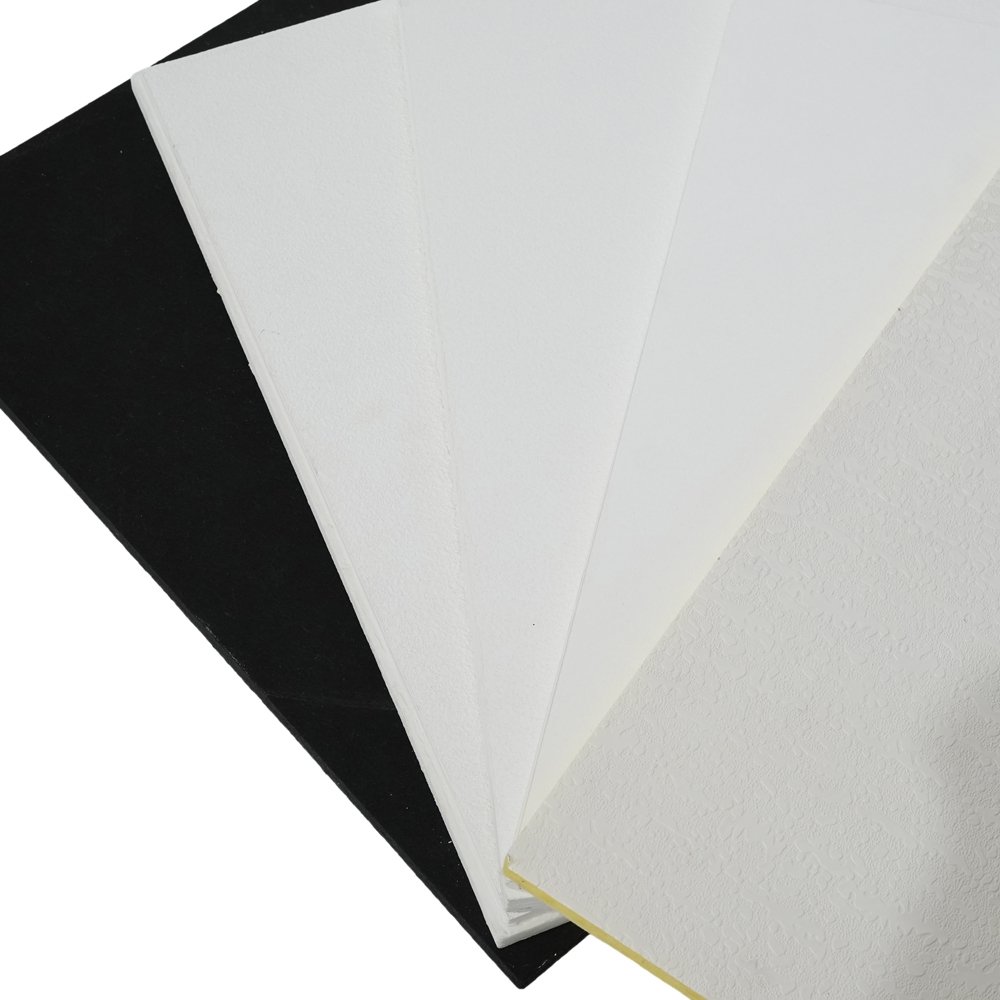

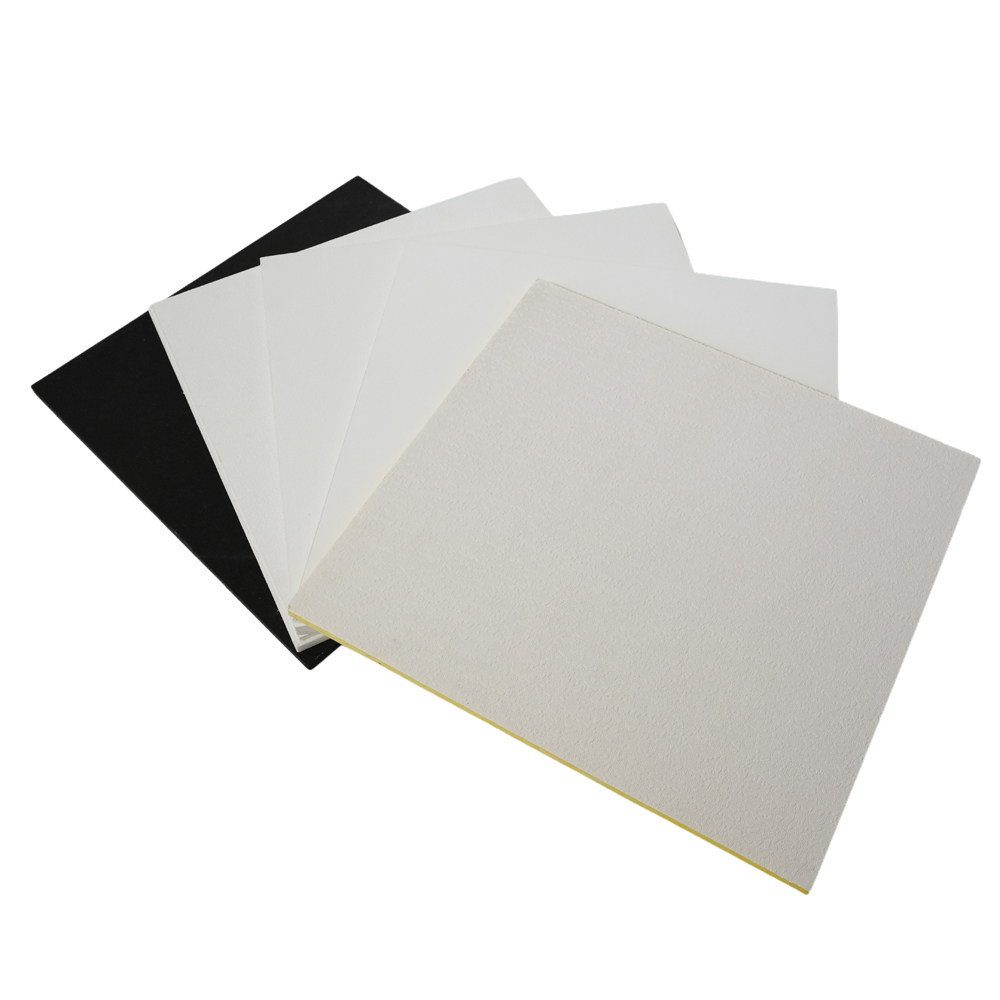

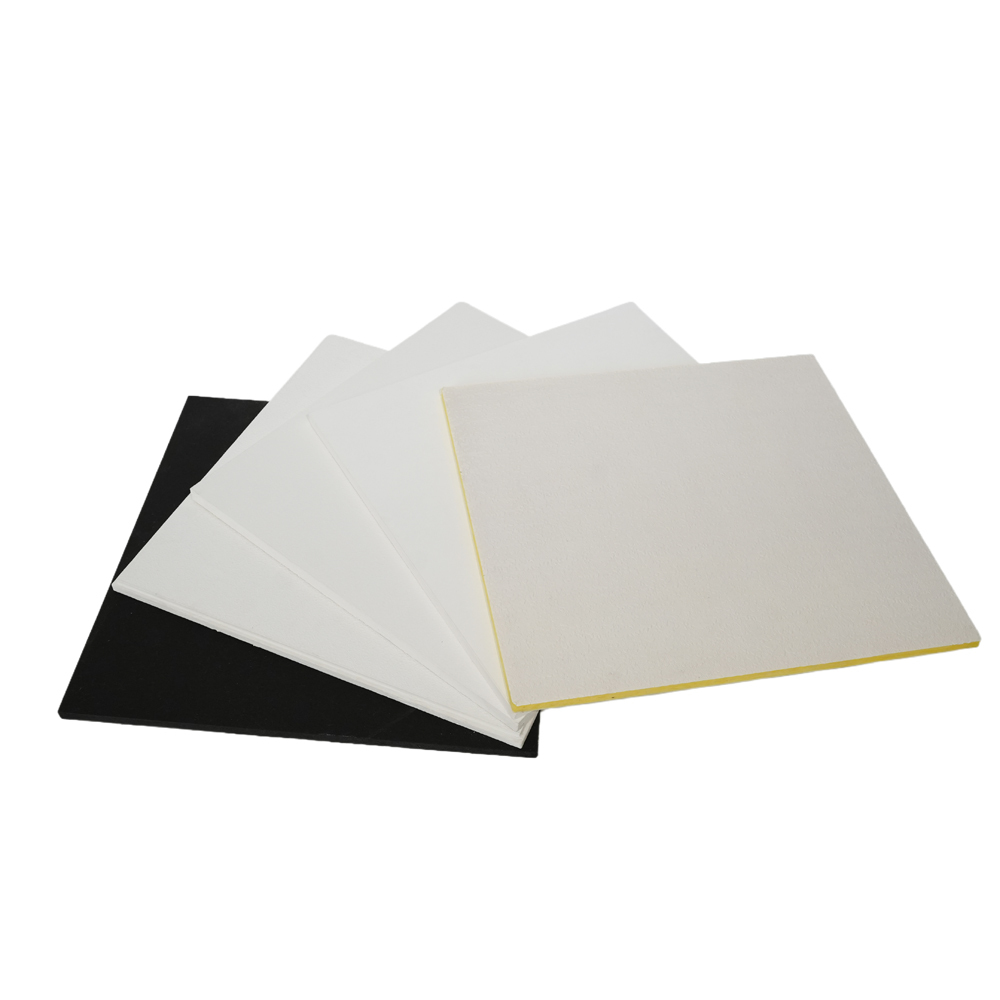

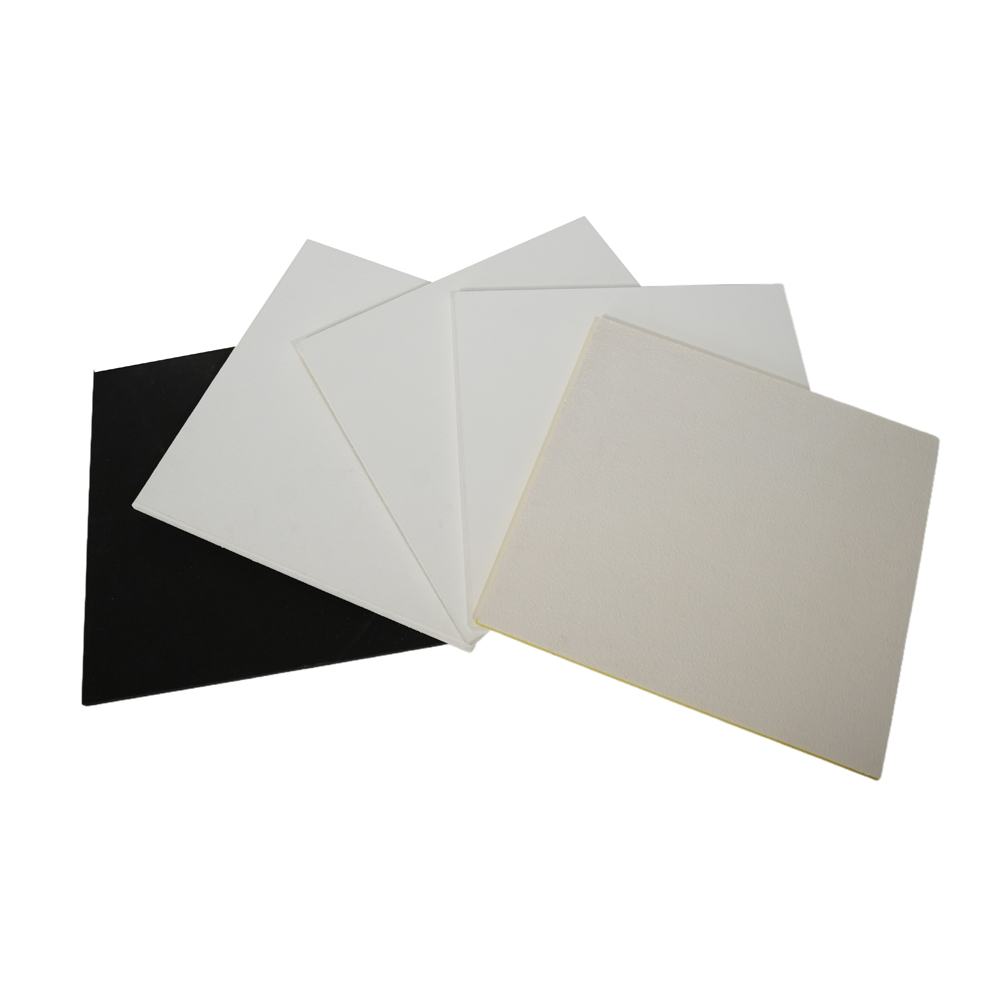

Fiberglass Ceiling Board | High-Density Acoustic & Fire-Resistant Ceiling Solution
Product Overview

The FANRYN Fiberglass Ceiling Board is a premium, high-density fiberglass wool panel designed for modern commercial and institutional interiors. Its visible face is laminated with a decorative fiberglass tissue or optional PVC facing, while the back features a stabilizing tissue. All four edges are sealed and squared, ensuring a clean, parallel fit with standard exposed grid systems (15mm or 24mm).

Fiberglass Ceiling Board | High-Density Acoustic & Fire-Resistant Ceiling Solution 0
Technical Specifications at a Glance
Parameter Value
Core Material High-density fiberglass wool
Density Range 90 – 130 kg/m³
Surface Finish Decorative fiberglass tissue / PVC facing
Fire Rating Class A (Non-combustible)
NRC (Sound Absorption) 0.9 – 1.0
Thermal Resistance ≥0.5 (m²·K/W)
Humidity Resistance Stable up to 95% RH @ 40°C (No sagging/warping)
Moisture Rate ≤1% (JC/T670-2005)
Sustainability Fully recyclable tiles and packaging
Why Choose FANRYN Fiberglass Ceilings?
  1. Class A Fire Resistance – Uncompromised Safety
    Safety is paramount. FANRYN boards meet strict international standards for non-combustible materials (Class A). They do not ignite, produce minimal smoke, and help contain fire, providing critical extra minutes for evacuation. Radiological safety is also assured with Ira ≤1.0 and Ir ≤1.3.

  2. Outstanding Acoustic Performance (NRC 0.9–1.0)
    With a Noise Reduction Coefficient ranging from 0.9 to 1.0, these boards absorb nearly all sound that hits them. This dramatically reduces echo and background noise, making them ideal for environments where clear communication is essential, such as classrooms, open-plan offices, and conference rooms.

  3. Engineered for Harsh Environments (95% RH)
    Thanks to the high-density fiberglass core and sealed edges, these panels are dimensionally stable even at 40°C and up to 95% relative humidity. They will not sag, warp, or delaminate, ensuring a flat, professional ceiling for years, even in areas like indoor pools, kitchens, or humid coastal buildings.

  4. Superior Thermal Resistance (≥0.5 m²·K/W)
    The fiberglass core naturally traps air, providing an extra layer of thermal insulation. This helps reduce heat transfer through the ceiling, contributing to lower energy costs for heating and cooling.

Common Applications
  • Educational: Classrooms, lecture halls, libraries (for clear speech intelligibility).

  • Corporate: Open-plan offices, meeting rooms, reception areas (for reduced distractions).

  • Commercial: Shopping centers, retail stores, restaurants (for a quieter, more pleasant atmosphere).

  • Healthcare: Clinics, waiting rooms (for hygiene and reduced noise stress).

Installation Flexibility
  • Compatible with exposed T-grids (15mm or 24mm width).

  • Works with both imperial (inches) and metric (centimeters) grid systems.

  • Easy to cut and trim on-site for lights, vents, or irregular spaces.

Packaging & Container Loading (40HQ)
Size (mm) Cartons per 40HQ Pieces per Carton Total Area (m²) per 40HQ
600 x 600 x 15 532 20 3830.4
600 x 1200 x 15 266 20 3830.4
600 x 600 x 20 532 15 2872.8
600 x 1200 x 20 266 15 2872.8
600 x 600 x 25 532 12 2298.24
600 x 1200 x 25 266 12 2298.24

Ordering Information: Standard color is white. Black and custom colors are available upon request.
